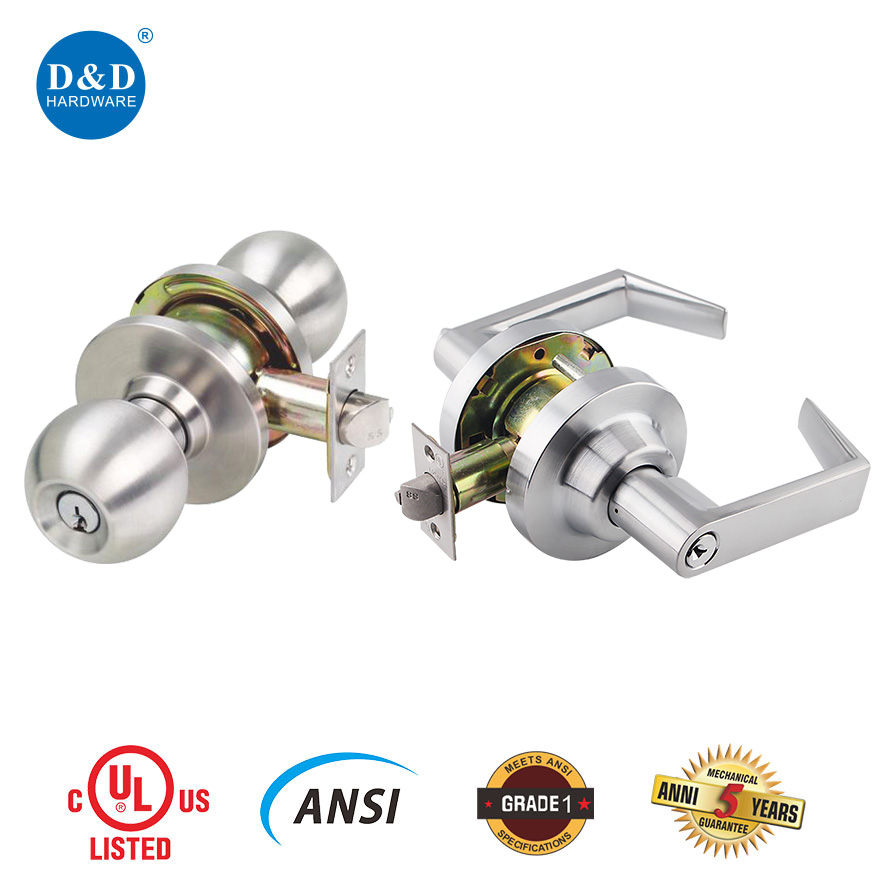

ANSI Door Handle Lock is a type of door hardware that complies with performance standards defined by American National Standards Institute, ensuring consistent quality in strength, durability, and security. These locks are commonly evaluated under grading systems such as Grade 1, Grade 2, and Grade 3, which indicate different levels of usage intensity. Widely used in commercial and residential projects, ANSI-certified door handle locks provide dependable operation, standardized dimensions, and compatibility with various door configurations and hardware systems.
Engineered for durability, security, and consistent performance across residential and commercial applications.
Flexible options available for wholesale, project supply, and OEM/ODM requirements.
The Entry Door Lever with Deadbolt (Model DDLK009) delivers a reliable combination of access control and reinforced security for residential and light commercial applications. This configuration integrates a smooth-operating lever handle with a high-security deadbolt system, ensuring both convenience and protection in daily use. Engineered to meet ANSI and UL 10C standards, it supports demanding environments where durability, fire resistance, and consistent performance are critical. Its stainless steel bolt with a 1/2 inch throw enhances resistance against forced entry, while the internal mechanism supports over 800,000 usage cycles, aligning with ANSI Grade 1 performance expectations. The latch and strike system is optimized for stable installation across standard door preparations, maintaining alignment and reducing long-term maintenance issues.
| Product Model | DDLK009 |
| Certification | ANSI, UL 10C, Grade 1 |
| Door Prep | Cross bore 2-1/8", Edge bore 1",Latch face 1-1/8"x2-1/4" |
| Backset | 2-3/4" standard.2-3/8" optional |
| Door Thickness | 1-3/8"--2" standard |
| Cylinder | 6-Pin removable core. Scalage "C" keyway. |
| Face plates | 1-1/8"x2-1/4" square corner standard |
| Strikes | ASA strike standard. 2-1/4" full lip square corner |
| Bolt | 1/2"throw, stainless steel |
| MOQ | 100PCS |
| Package | 1pc / poly bag, white box / color inner box, standard export carton |
| Sample Time | 5-7 working days |
| Production Lead Time | 30-35 days normally |
| Shipping Port | Jiangmen, China / Shenzhen, China |
Exterior Door Knobs with Deadbolt combine mechanical reliability with consistent security performance for residential and light commercial entry systems. This lockset integrates a keyed knob and a deadbolt mechanism into a unified solution, ensuring controlled access while maintaining stable operation under frequent use. The internal structure adopts a precision-machined cylinder system with a standard “C” keyway, allowing compatibility with common key management systems. With reinforced latch components and a stainless steel bolt structure, the product maintains smooth engagement and release cycles without instability. The overall configuration aligns with standard door preparation requirements, enabling efficient installation across a wide range of door types. In practical use, the lock delivers a balanced user experience with consistent torque, stable locking feedback, and reliable resistance to forced entry attempts, supporting long-term operational consistency.
| Product Model | DDLK012 |
| Certification | ANSI, UL 10C, Grade 2 |
| Door Prep | Cross bore 2-1/8", Edge bore 1",Latch face 1-1/8"x2-1/4" |
| Backset | 2-3/4"standard.2-3/8" optional |
| Door Thickness | 1-3/8"--2" standard |
| Cylinder | 5-Pin or 6-Pin removable core, Scalage "C" keyway. |
| Rosette | Removable interior and exterior rosette by screw thread |
| Face plates | 1-1/8"x2-1/4"square corner standard |
| Strikes | 2-1/4" full lip square corner standard |
| Bolt | 1/2"throw, stainless steel |
| MOQ | 100PCS |
| Package | 1pc / poly bag, white box / color inner box, standard export carton |
| Sample Time | 5-7 working days |
| Production Lead Time | 30-35 days normally |
| Shipping Port | Jiangmen, China / Shenzhen, China |
ANSI door handle locks are widely used in residential housing, office buildings, hotels, and commercial facilities where standardized performance and reliability are required. They are commonly installed on entry doors, interior passage doors, and service areas, offering consistent operation across different usage conditions. In large-scale construction projects, ANSI-compliant locks simplify procurement and installation by ensuring compatibility with other hardware components.
See real product details, structure, and usage scenarios through our visual demonstrations.
Please contact us by email or phone with your detailed requirements. Our team will reply within 24 hours. In addition to door hardware, D&D also delivers complete door opening solutions.
We accept T/T, D/P, Western Union, and L/C as payment methods.
We are a manufacturer with over 18 years of experience and are an SGS-audited factory specializing in architectural hardware.
Yes. Up to three samples can be provided free of charge. Customers are required to arrange a courier account for freight collection.
We mainly use SUS304 and SUS316 stainless steel, with SUS201 available for selected product applications.
All our products are backed by a 10-year mechanical warranty.
Yes. We operate a complete quality control system, with strict inspection and monitoring at every stage of mass production following standardized procedures.
Yes. We provide both OEM and ODM solutions and have extensive experience collaborating with well-known global brands.
Our products carry CE and UL certifications, and all designs are developed in accordance with international standards such as EN/CE, UL, ANSI, and BHMA.
