Panic Bar Exit Device DDPD025 complies with UL305 and ANSI standards, offering dependable emergency egress performance for commercial door systems. This model is available in steel and SUS 304 stainless steel options, supporting different project requirements in terms of durability and corrosion resistance. The structure allows integration with trims or levers on the opposite side of the door, providing flexibility across various door hardware configurations. The device supports installation on both single and double doors, including applications with or without astragal. Rim, mortise, and vertical rod configurations can be applied depending on project needs. Various finishes such as painted silver, satin stainless steel, PVD antique brass, and gold provide adaptability to different architectural styles.

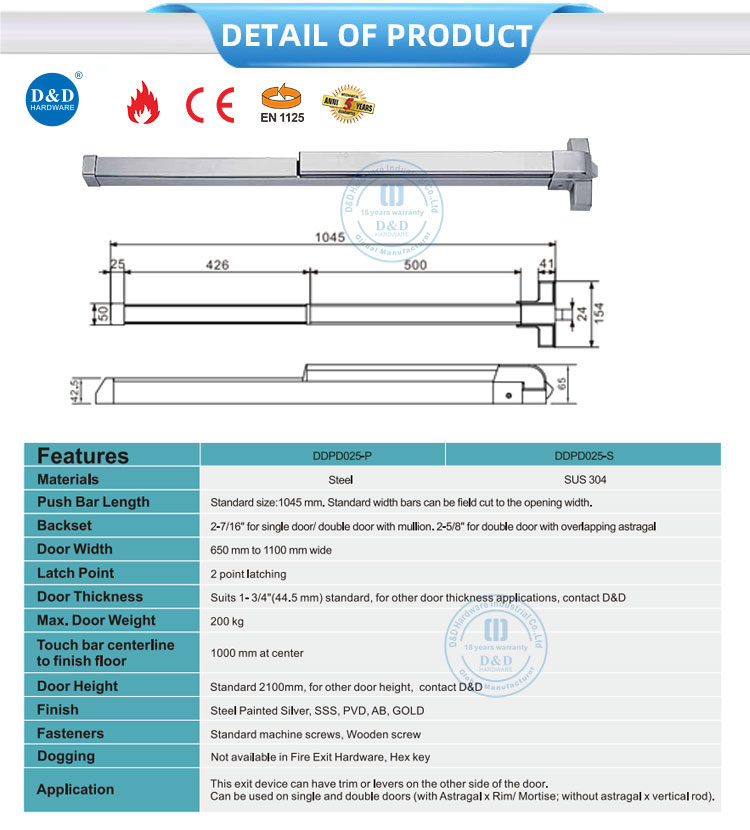

| Product Model | DDPD025-P | DDPD025-S |
| Materials | Steel | SUS 304 |
| Application | This exit device can have trim or levers on the other side of the door. Can be used on single and double doors(with Astragal x Rim/Mortise; without astragal x vertical rod). | |

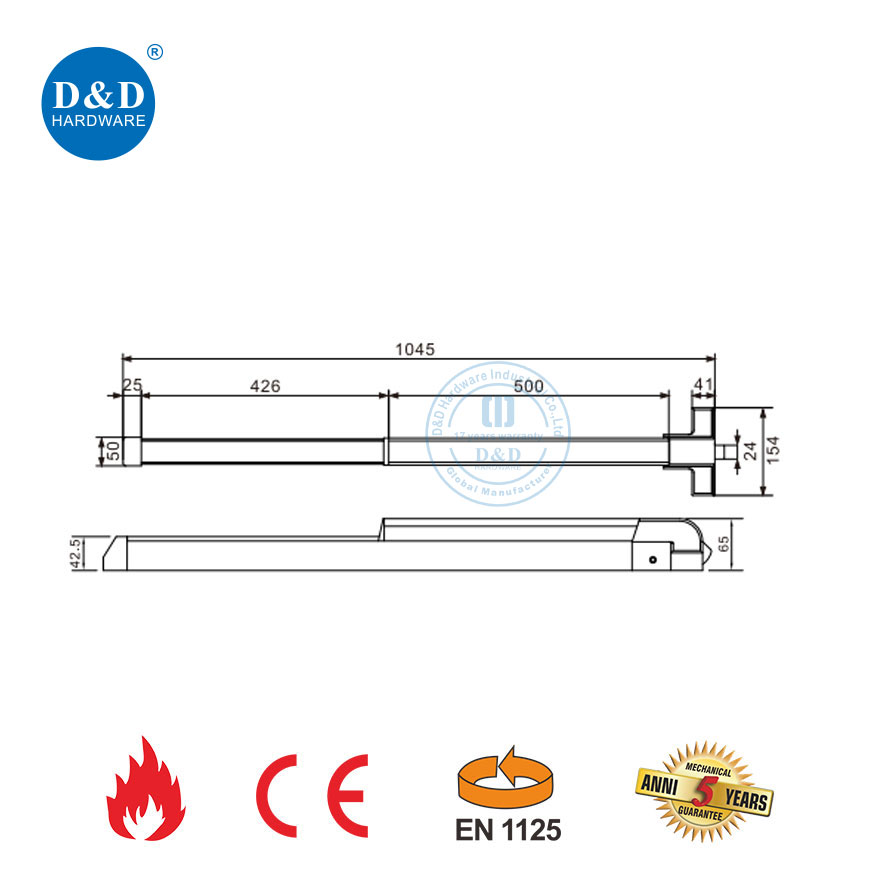

| Push Bar Length | Standard size:1045mm.Standard width bars can be field cut to the opening width. | |
| Backset | 2-7/16" for single door/double door with mullion. 2-5/8" for double door with overlapping astragal | |
| Door Width | 650mm to 1100mm wide | |
| Latch Point | 2 point latching | |
| Door Thickness | Suits 1-3/4（44.5mm）standard, for other door thickness applications, contact D&D | |
| Max. Door Weight | 200kg | |
| Touch Bar Centerline to Finish Floor | 1000mm at center | |
| Door Height | Standard 2100mm,for other door height,contact D&D | |
| Finish | Steel Pantd Silver, SSS, PVDAB, GOD | |
| Fasteners | Standard machine screws, Wooden screw | |
| Dogging | Not available in Fire Exit Hardware, Hex key | |
| MOQ | 50 PCS | |
| Package | 1pc / poly bag, white box / color inner box, standard export carton | |
| Sample Time | 5-7 working days | |
| Production Lead Time | 45-60 days normally | |
| Shipping Port | Jiangmen, China / Shenzhen, China | |
D&D Hardware is a professional manufacturer and supplier of architectural door hardware and complete door opening solutions. With over 18 years of manufacturing experience and ISO 9001 certification, we serve global customers from our production base in China, delivering reliable hardware solutions for metal doors, wooden doors, and fire-rated doors.
Our product portfolio covers a full range of commercial and architectural hardware, including door hinges, door locks, lever handles, door closers, exit devices, door stoppers, door bolts, and related accessories. In addition to standard product lines, we offer flexible customization options to support specific project requirements, while ensuring each product meets the functional, safety, and durability demands of modern building applications across diverse environments.
