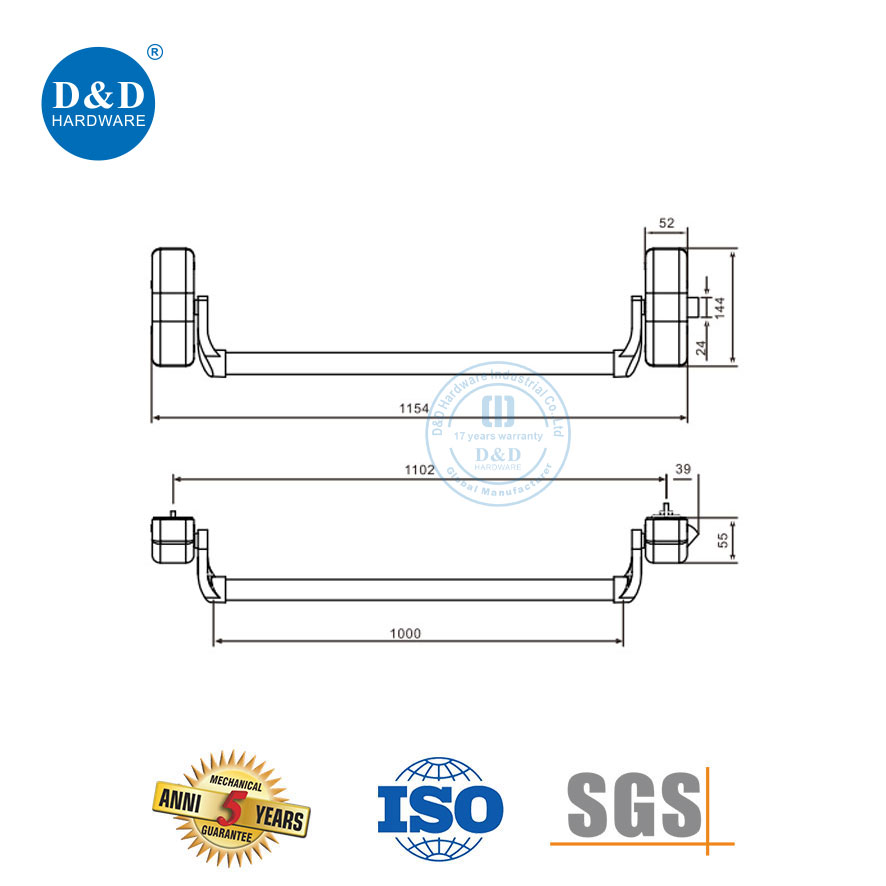

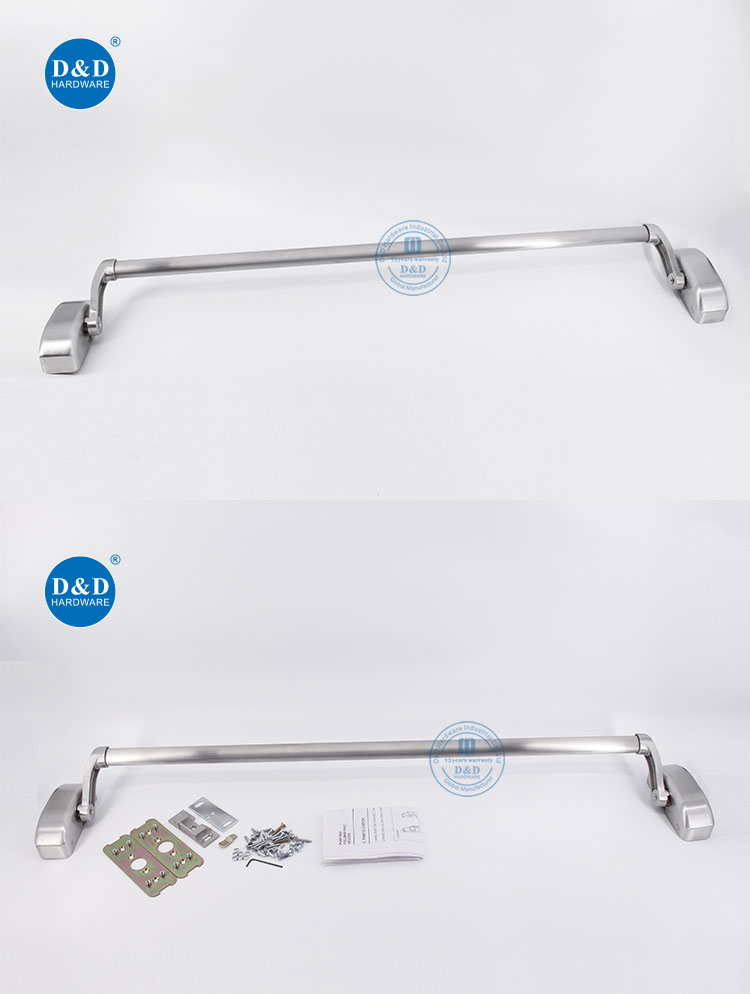

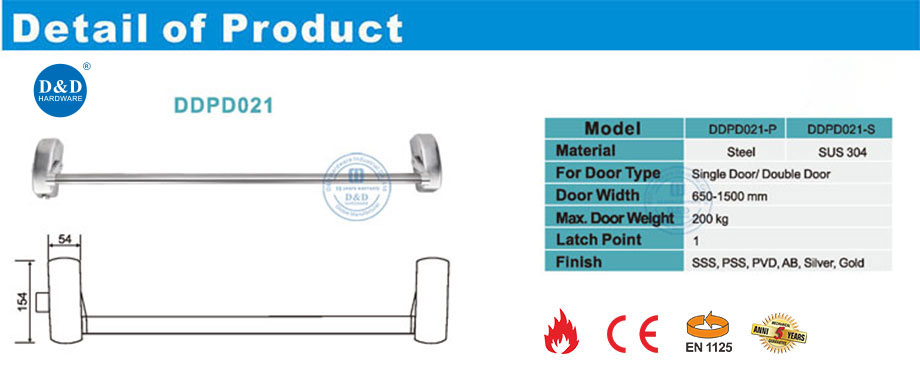

Cross Bar Exit Device

Reliable emergency egress performance is critical in public and commercial buildings, and the Cross Bar Exit Device offers a practical solution for fast and safe evacuation. This EN1125 compliant panic exit device features a European-style push cross bar structure, allowing smooth operation under pressure situations while maintaining secure door locking during normal use. Certified with CE EN1125 and EN1634 fire rating, it supports both safety compliance and fire protection standards required in high-traffic environments. With a single latch point mechanism, the device provides stable locking performance for both single and double door applications. It accommodates door widths from 650 mm to 1500 mm and supports doors up to 200 kg, making it suitable for a wide range of commercial installations.

1. EN 1125 Exit Compliance

The DDPD021 Cross Bar Exit Device complies with CE EN 1125 and has been fire tested to EN 1634, supporting specification for public escape routes and fire door assemblies. Its cross bar provides a broad push area that releases the latch when operated. Documented compliance helps consultants, door manufacturers, and contractors complete submittals, door schedule reviews, and project inspections.

2. Single and Double Doors

The product can be installed on single or double doors, providing one exit hardware series for different opening widths and door arrangements. Its single-point latch configuration reduces the number of transmission components involved in installation. Project teams can plan the hardware around active and inactive leaf operation, frame construction, and escape requirements while simplifying purchasing and future inspection.

3. 650–1500mm Door Width

DDPD021 accommodates door widths from 650mm to 1500mm, covering compact passage doors and larger building exits. This broad range allows door manufacturers to position the cross bar according to the actual leaf width and maintain suitable hardware proportions. The Cross Bar Exit Device can serve varied new-build and renovation doors, reducing the number of project models and spare units.

4. Up to 200kg Door Weight

The device supports doors weighing up to 200kg and can be specified for metal doors, steel fire doors, and other heavy swing doors used in commercial buildings. SUS304 or steel construction provides the material base for its bar, operating components, and latch. Buyers can coordinate DDPD021 with the door material, weight, closer power, and expected operating frequency.

5. Six Finish Choices

The Cross Bar Exit Device is available in SSS, PSS, PVD, antique brass, silver, and gold finishes for coordination with stainless steel doors, coated steel doors, and varied interiors. Buyers can select SUS304 or steel according to the environment and budget. The finish range also helps align exit hardware with hinges, door closers, and surrounding door colors.

1. Shopping Mall Exits

Corridors, cinema exits, and floor evacuation doors in shopping malls require rapid release during high-occupancy conditions. The Cross Bar Exit Device complies with CE EN 1125 and operates through a direct push on the bar. Its 650mm to 1500mm door-width range covers varied retail door sizes, with configurations available for both single and double exits.

2. School Buildings

Corridors, auditoriums, gymnasiums, and stairwell exits in schools require hardware that different age groups can operate intuitively. DDPD021 releases the door when users push the cross bar in the escape direction. It supports door weights up to 200kg and has been tested to EN 1634, making it suitable for school fire doors and public exits.

3. Hotel Public Areas

Hotel banquet halls, conference areas, restaurants, and guest-floor corridors can use the Cross Bar Exit Device to provide recognizable emergency egress operation. Its single-point latch simplifies installation checks, while SSS, PVD, and gold finishes coordinate with hotel interiors. The device supports standardized purchasing for both single-leaf and double-leaf escape doors.

4. Factory Emergency Exits

Emergency exits in workshops, warehouses, and employee passages may use metal doors with different dimensions and weights. DDPD021 covers door widths from 650mm to 1500mm and supports leaves weighing up to 200kg. Steel or SUS304 construction can be selected for site conditions, allowing the Cross Bar Exit Device to enter the factory fire-door hardware schedule.
