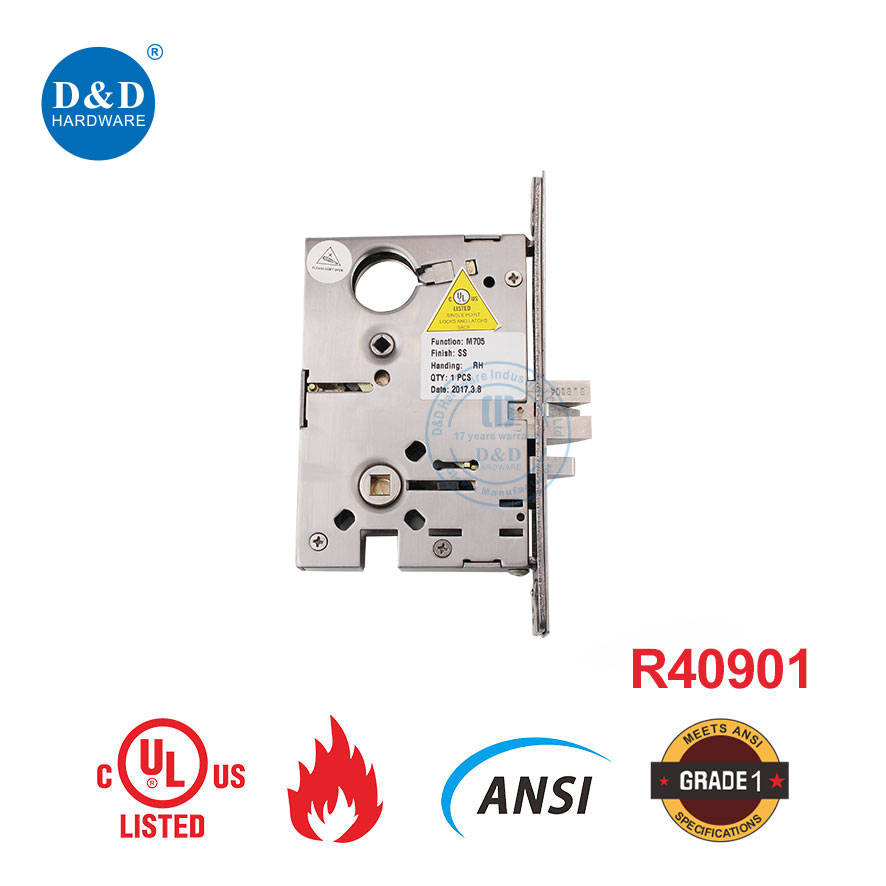

Commercial Mortise Lock
Products Description

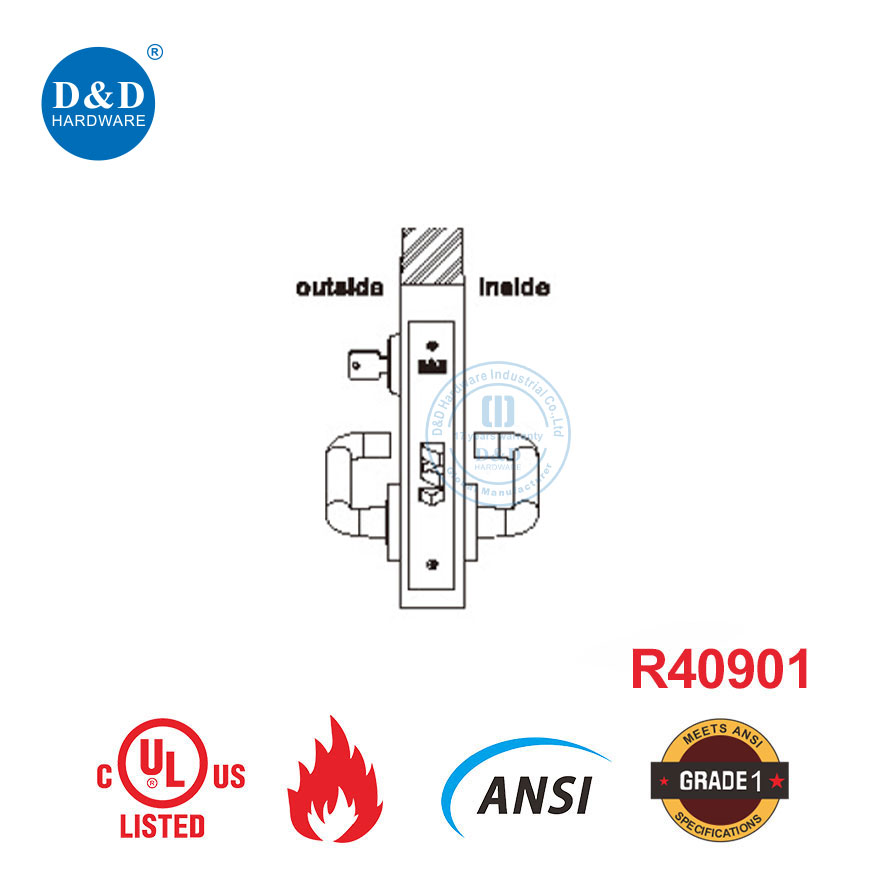

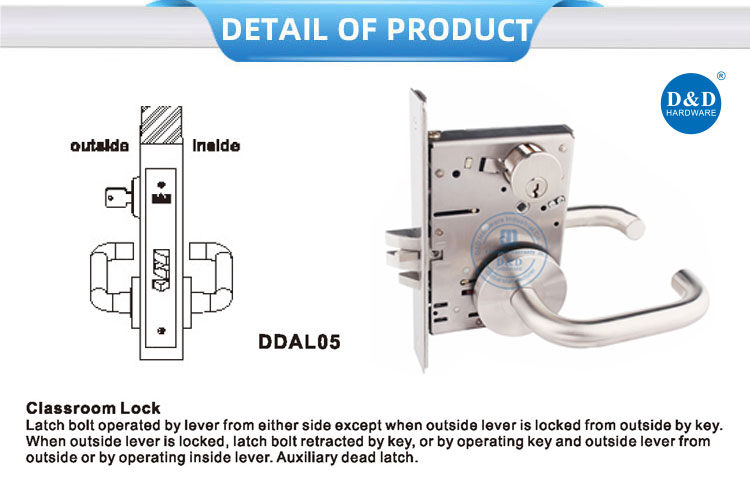

Latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt retracted by key, or by operating key and outside lever from outside or by operating inside lever. Auxiliary dead latch. The Commercial Mortise Lock delivers a high level of security and durability for demanding door applications where safety, compliance, and long-term performance are essential. Engineered to meet ANSI/BHMA A156.13-2005 Grade 1 standards and certified with UL fire rating, this lockset supports reliable operation in commercial environments such as office buildings, public facilities, and large-scale projects. The internal lockcase uses heavy gauge stainless steel to ensure strong resistance against corrosion and repeated use, maintaining stable functionality over time. With compatibility for both left-hand and right-hand doors and a standard fit for door thickness ranging from 45mm to 55mm, this lockset supports flexible installation across various commercial door systems. Precision manufacturing ensures accurate alignment, reducing installation errors and improving overall efficiency in project deployment.

Commercial Mortise Lock Specifications

Product ModelDDAL05 F05
ApplicationWood Door, Metal Door, Fire Rated Door, etc.
Certification and ComplianceANSI/BHMA A156.13-2005 Grade 1, UL Fire Rated Certificated
FinishSSS, PSS, PVD, PB, AB, AC, MB
LockcaseHeavy Gauge Stainless Steel for Corrosion Resistance
DeadboltSolid Casting SUS304, Project 1"(25.4mm)
LatchboltSolid Casting SUS304, Project 3/4"(19mm), Anti-Friction Two Pieces and Can be Reversible
Auxiliary LatchboltStainless steel
ForendStainless steel Grade 304
StrikeStainless steel Grade 304, Non-Handed
Door Thickness45mm to 55mm As Standard
Backset2-3/4" (70mm)
Center to Center3-5/8"(92mm)
Door HandingLeft Hand and Right Hand
MOQ200PCS
Package1pc / poly bag, white box / color inner box, standard export carton
Sample Time5-7 working days
Production Lead Time30-35 days normally
Shipping PortJiangmen, China / Shenzhen, China

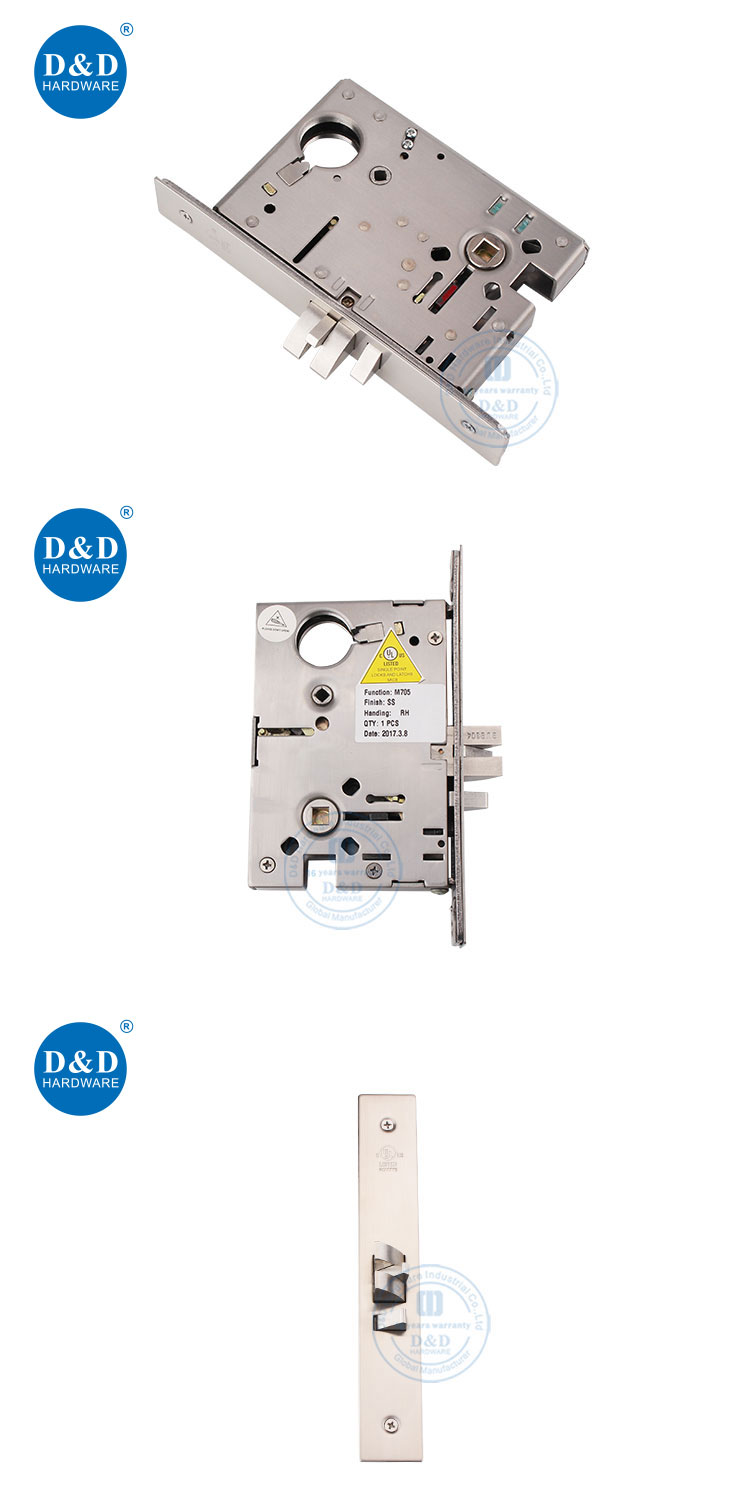

Commercial Mortise Lock More Product Details


About D&D Hardware

D&D Hardware is a professional manufacturer and supplier of architectural door hardware and complete door opening solutions. With over 18 years of manufacturing experience and ISO 9001 certification, we serve global customers from our production base in China, delivering reliable hardware solutions for metal doors, wooden doors, and fire-rated doors.

Our product portfolio covers a full range of commercial and architectural hardware, including door hinges, door locks, lever handles, door closers, exit devices, door stoppers, door bolts, and related accessories. In addition to standard product lines, we offer flexible customization options to support specific project requirements, while ensuring each product meets the functional, safety, and durability demands of modern building applications across diverse environments.
