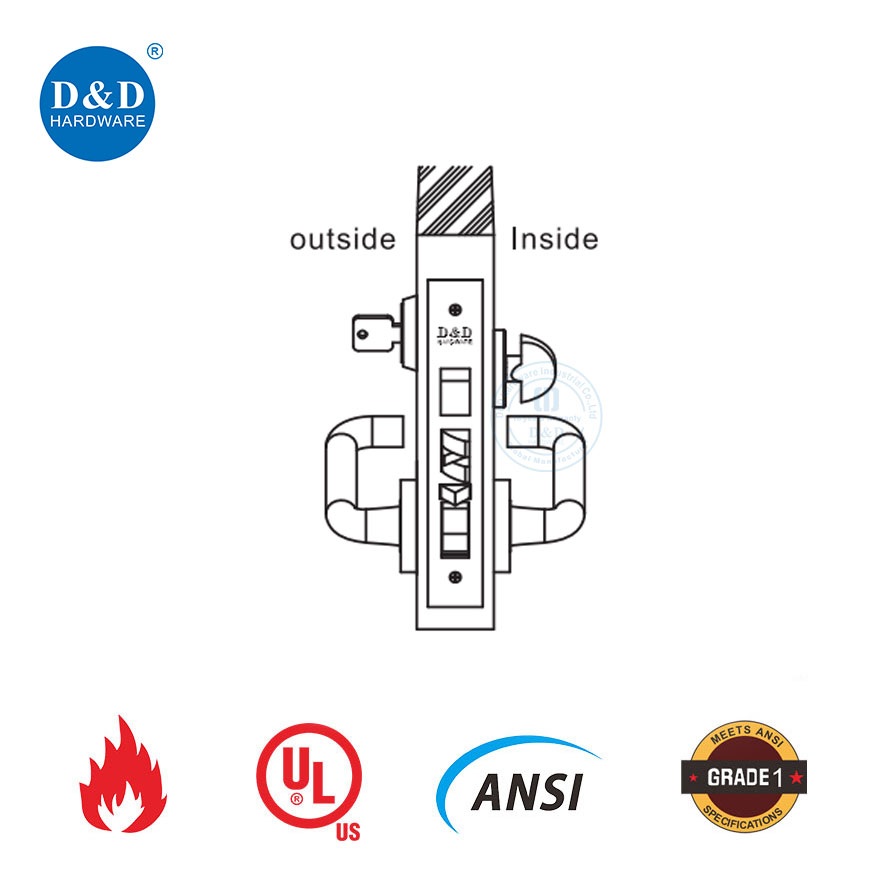

Latch bolt operated bylever from either side, except when outside lever is made inoperative by a stop or mechanical means other than key. Dead bolt operated by key outside or thumb turn inside, Key outside operates both bolts. Operating inside lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside lever is made inoperative or when the dead bolt is projected. When deadbolt is retracted,lever is unlocked by a stop works.
| Product Model | DDAL20 F20 |
| Application | Wood Door, Metal Door, Fire Rated Door, etc. |
| Certification and Compliance | ANSI/BHMA A156.13-2005 Grade 1, UL Fire Rated Certificated |
| Finish | SSS, PSS, PVD, PB, AB, AC, MB |
| Lockcase | Heavy Gauge Stainless Steel for Corrosion Resistance |
| Deadbolt | Solid Casting SUS304, Project 1"(25.4mm) |
| Latchbolt | Solid Casting SUS304, Project 3/4"(19mm), Anti-Friction Two Pieces and Can be Reversible |
| Auxiliary Latchbolt | Stainless steel |
| Forend | Stainless steel Grade 304 |
| Strike | Stainless steel Grade 304, Non-Handed |
| Door Thickness | 45mm to 55mm As Standard |

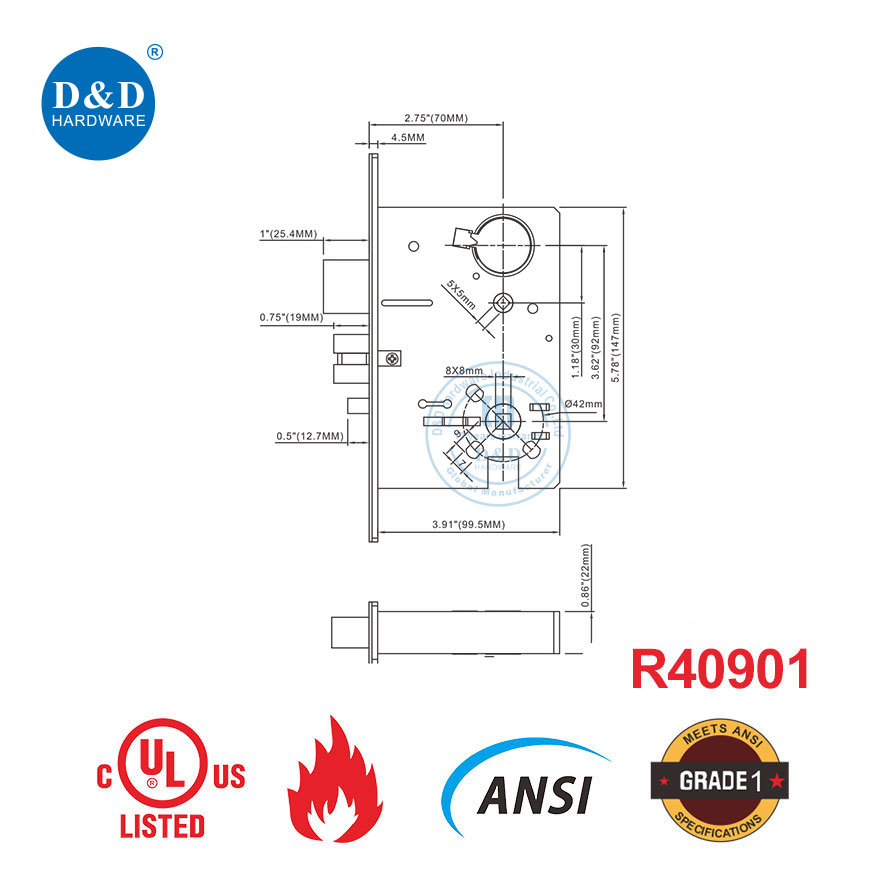

| Backset | 2-3/4" (70mm) |
| Center to Center | 3-5/8"(92mm) |
| Door Handing | Left Hand and Right Hand |
| MOQ | 200PCS |
| Package | 1pc / poly bag, white box / color inner box, standard export carton |
| Sample Time | 5-7 working days |
| Production Lead Time | 30-35 days normally |
| Shipping Port | Jiangmen, China / Shenzhen, China |
