American Mortise Lock

American Mortise Lock is a professional mortise door lock solution developed for hotels, commercial buildings, and architectural projects. It features key operation from outside and lever operation from inside, providing convenient access management for different applications. The product includes a heavy gauge stainless steel lockcase with SUS304 deadbolt and latchbolt components, complies with ANSI/BHMA A156.13-2005 Grade 1 standards, and is UL Fire Rated certified for wood doors and metal doors.

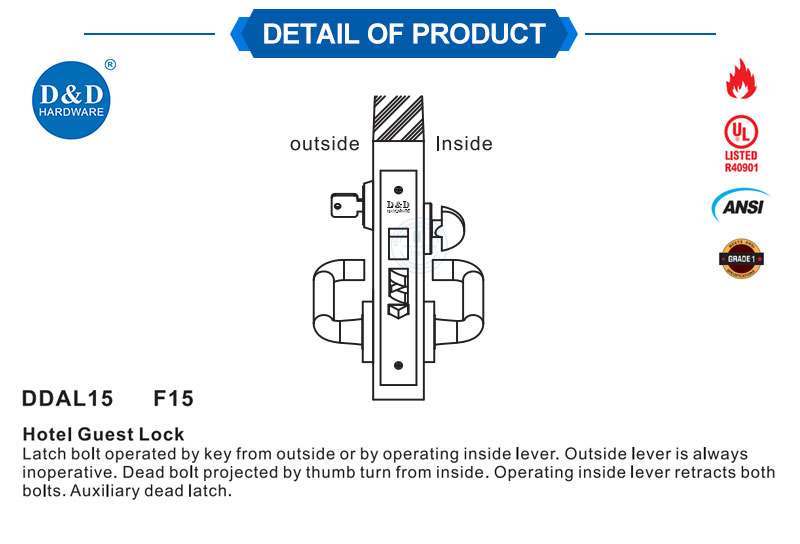

1. Hotel Lock Function

American Mortise Lock features a hotel guest lock function with outside lever always inoperative and key-controlled access from outside. The inside lever operation retracts both latchbolt and deadbolt, providing convenient access control for hotel rooms and managed areas. This configuration meets professional requirements for hospitality door hardware projects.

2. SUS304 Bolt Components

This American Mortise Lock adopts a solid casting SUS304 deadbolt with a 1"(25.4mm) projection length and a solid casting SUS304 latchbolt with a 3/4"(19mm) projection. The latchbolt features an anti-friction two-piece structure with reversible adjustment, allowing flexible installation for different door handing requirements.

3. Grade 1 Certification

American Mortise Lock complies with ANSI/BHMA A156.13-2005 Grade 1 standards and is UL Fire Rated certified for hotels, commercial buildings, and public projects. The product includes stainless steel Grade 304 forend and strike components with a non-handed strike design, providing standardized door hardware solutions for professional construction applications.

4. Standard Installation Sizes

This product supports door thickness from 45mm to 55mm, featuring a 2-3/4”(70mm) backset and 3-5/8”(92mm) center-to-center dimension. American Mortise Lock supports left-hand and right-hand door handing options, making it suitable for different door structures. Standard dimensions simplify bulk installation for contractors and distributors.

5. Stainless Steel Finishes

American Mortise Lock is available in SSS, PSS, and PVD finishes to match different hotel, office, and commercial interior designs. The stainless steel components combined with refined surface treatments provide a coordinated appearance. Buyers can select suitable configurations according to project styles and door hardware requirements.

1. Hotel Rooms

Hotel rooms require door locks with professional access management functions. American Mortise Lock features hotel-style locking operation and is suitable for wooden and metal guest room doors. The outside key control and inside lever operation design meet daily hotel management requirements for large hospitality projects.

2. Office Buildings

Office buildings require professional door hardware for offices, meeting rooms, and management areas. American Mortise Lock is suitable for wooden and metal doors in commercial environments. Different handing options provide installation flexibility, while ANSI Grade 1 certification supports commercial construction requirements.

3. Apartment Projects

Apartment developments require standardized door locks for large-scale installation. American Mortise Lock is suitable for residential unit doors, shared areas, and interior spaces. SUS304 bolt components and standard installation dimensions provide suitable solutions for developers and door manufacturers.

4. Commercial Renovation

Commercial renovation projects require door hardware that supports efficient replacement and design coordination. American Mortise Lock can be installed on wooden and metal doors in shopping centers, service areas, and commercial spaces. Standard specifications and finish options help contractors upgrade existing door systems.
