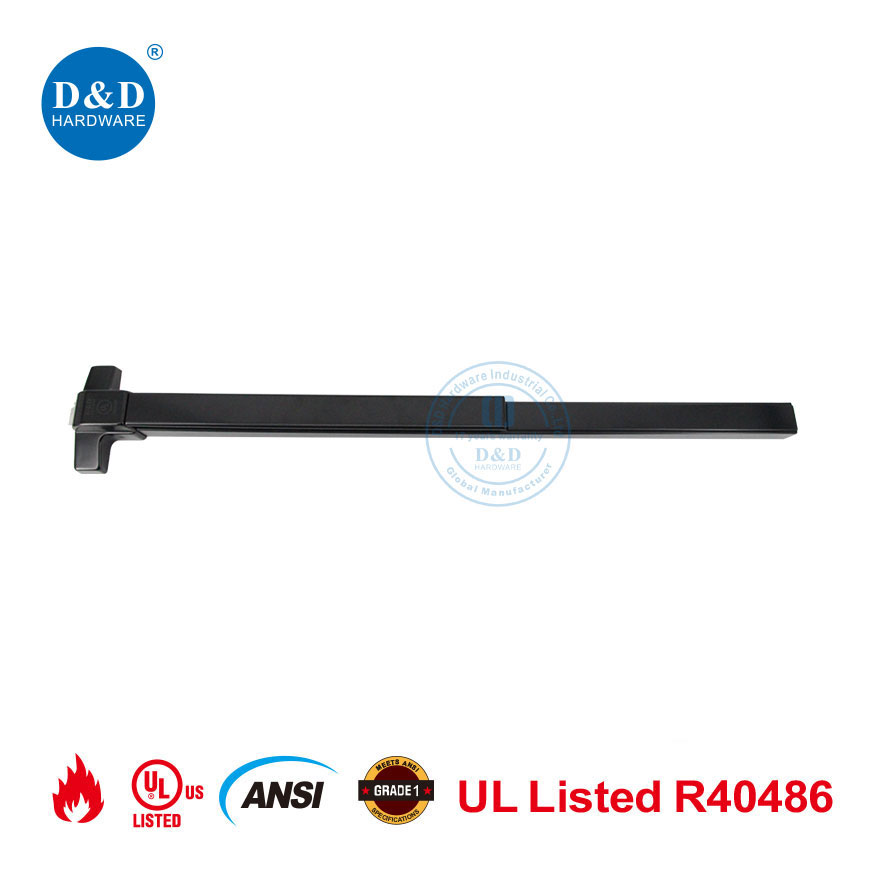

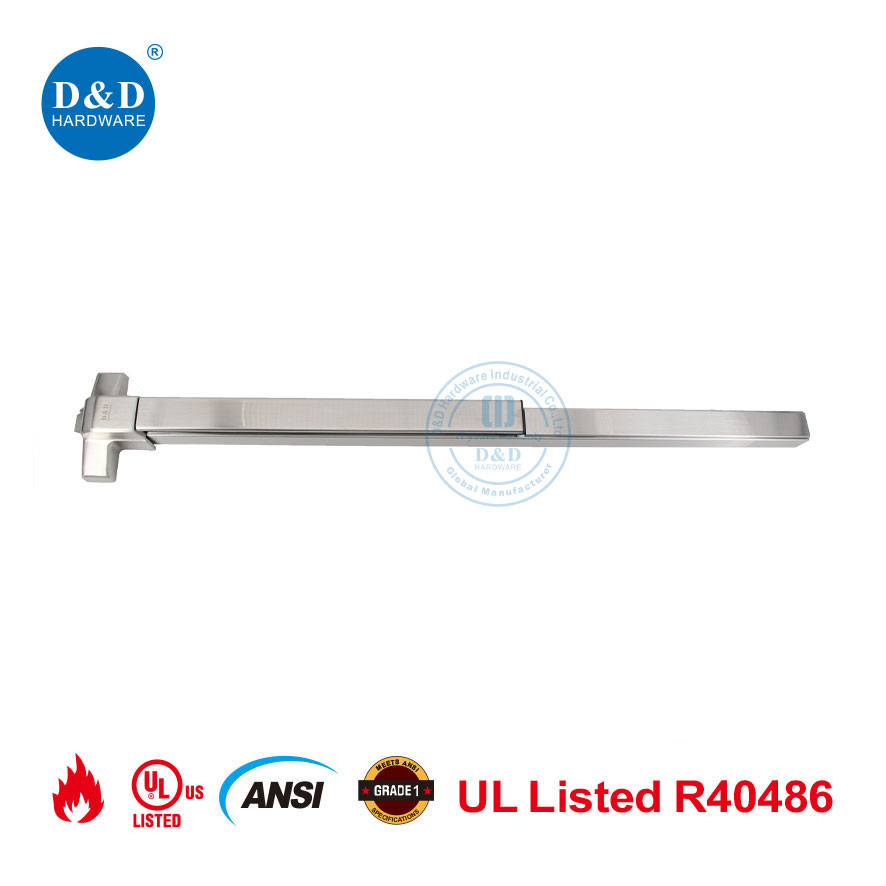

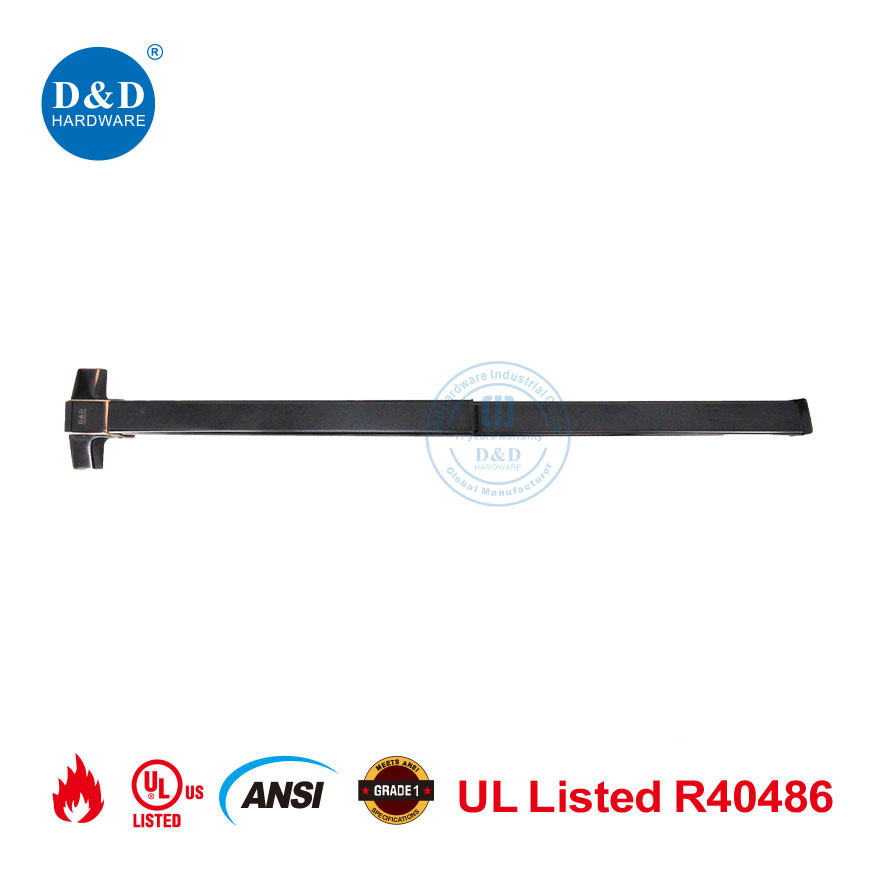

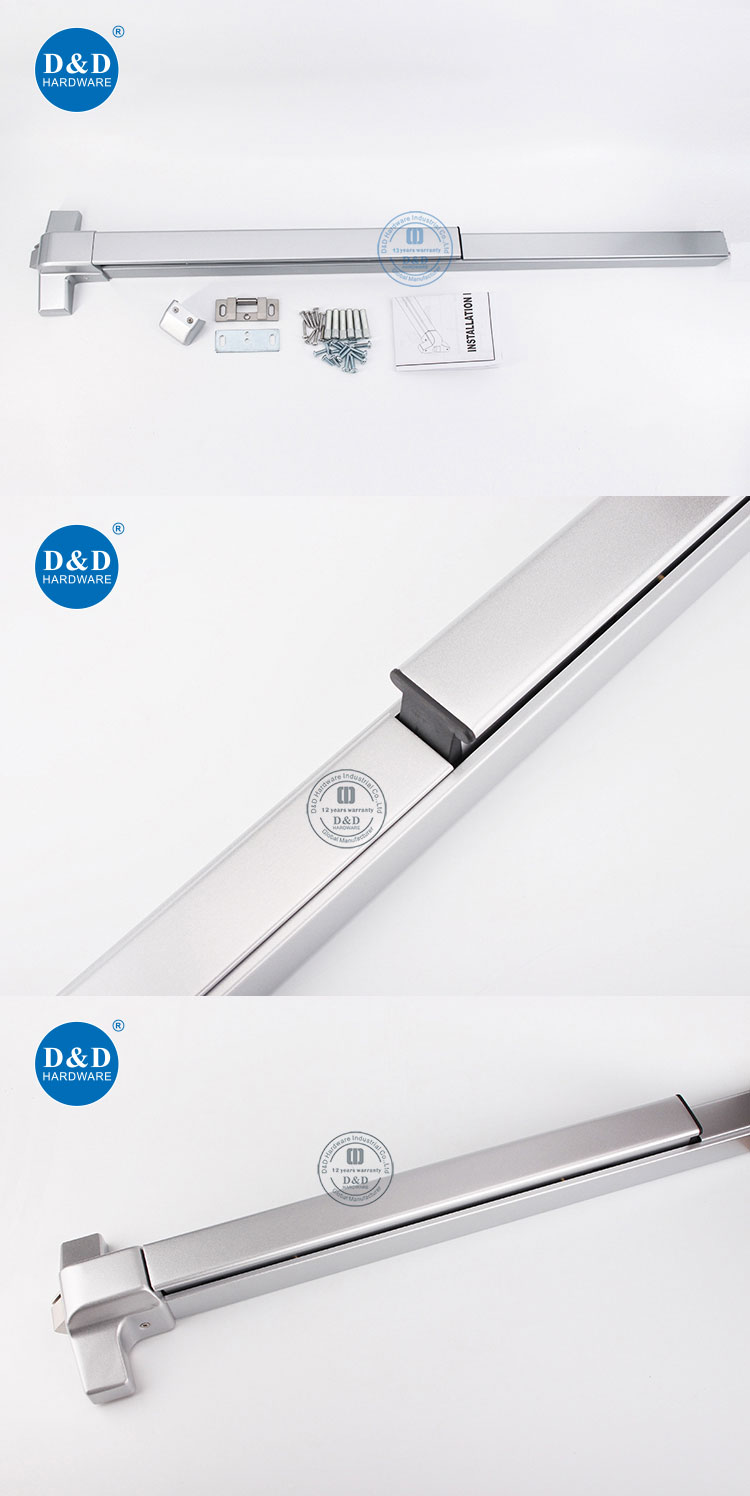

The Emergency Exit Door Panic Bar delivers consistent operation under pressure, combining ANSI Grade 1 certification with UL fire-rated approval to meet strict building safety standards. Engineered for rim-type installation, this touch push bar ensures quick and effortless door release, even during emergency situations. With a solid steel or SUS 304 stainless steel construction, the device maintains long-term structural stability and corrosion resistance across demanding applications such as public buildings, industrial facilities, and commercial complexes. The push bar mechanism provides smooth activation with minimal force, supporting efficient evacuation flow while reducing operational wear over time. Multiple surface finishes, including painted silver, stainless steel, and PVD coatings, provide both functional durability and visual consistency across project specifications.

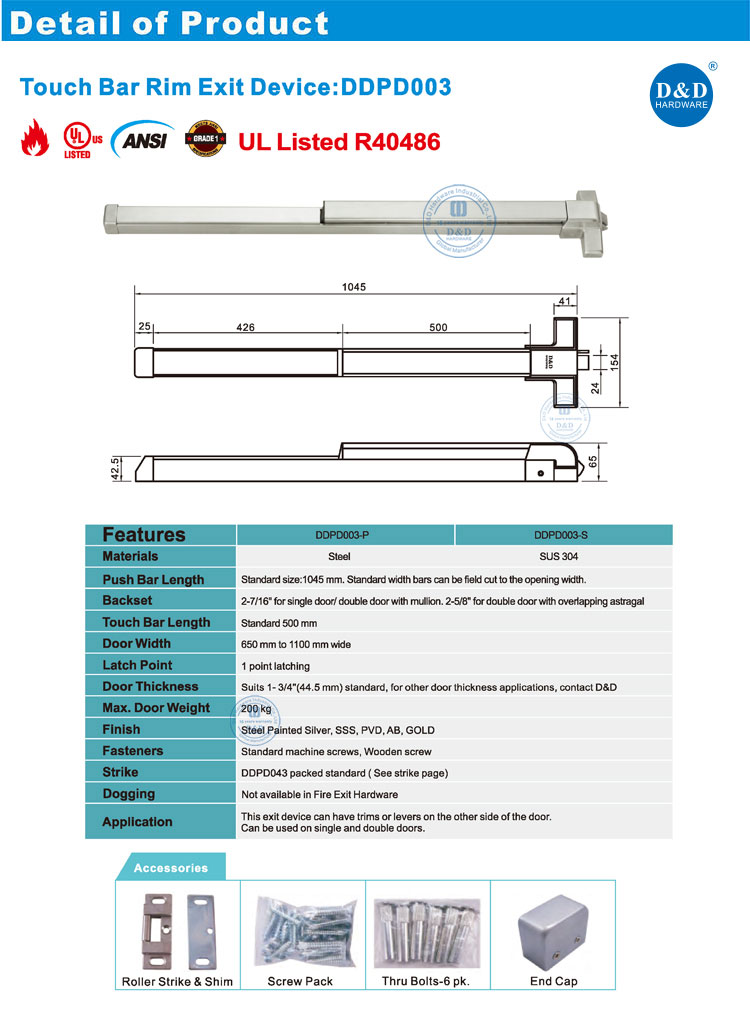

| Product Model | DDPD003-P | DDPD003-S |
| Materials | Steel | SUS 304 |
| Certification | UL Listed, UL 305, high quality assurance. ANSI/BHMA A156.3 | |

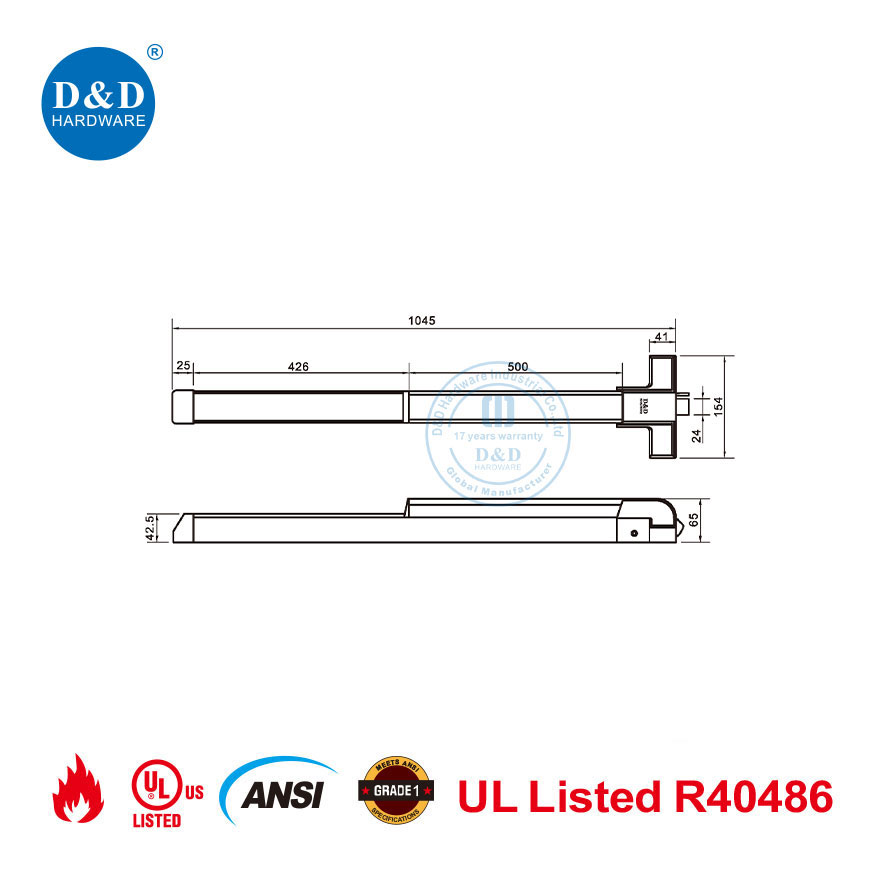

| Push Bar Length | Standard size: 1045mm. Standard width bars can be fIeld cut to the opening width. | |
| Backset | 2-7/16" for single door / double door with mullion. 2-5/8" for double door with overlapping astragal | |
| Touch Bar Length | Standard 500mm | |
| Door Width | 650mm to 1100mm wide | |
| Latch Point | 1 point latching | |
| Door Thickness | Suits 1-3/4"(44.5 mm) standard, for other door thickness applications, contact us | |
| Max. Door Weight | 200 kg | |
| Finish | Steel Painted Silver, SSS, PVD, AB, GOLD | |
| Fasteners | Standard machine screws, Wooden screw | |
| Strike | DDPD043 packed standard (See strike page) | |
| Dogging | Not available in Fire Exit Hardware, Hex key | |
| MOQ | 50PCS | |
| Package | 1pc / poly bag, white box / color inner box, standard export carton. | |
| Sample Time | 5-7 working days | |
| Production Lead Time | 45-60 days normally | |
| Shipping Port | Jiangmen, China / Shenzhen, China | |
D&D Hardware is a professional manufacturer and supplier of architectural door hardware and complete door opening solutions. With over 18 years of manufacturing experience and ISO 9001 certification, we serve global customers from our production base in China, delivering reliable hardware solutions for metal doors, wooden doors, and fire-rated doors.
Our product portfolio covers a full range of commercial and architectural hardware, including door hinges, door locks, lever handles, door closers, exit devices, door stoppers, door bolts, and related accessories. In addition to standard product lines, we offer flexible customization options to support specific project requirements, while ensuring each product meets the functional, safety, and durability demands of modern building applications across diverse environments.
