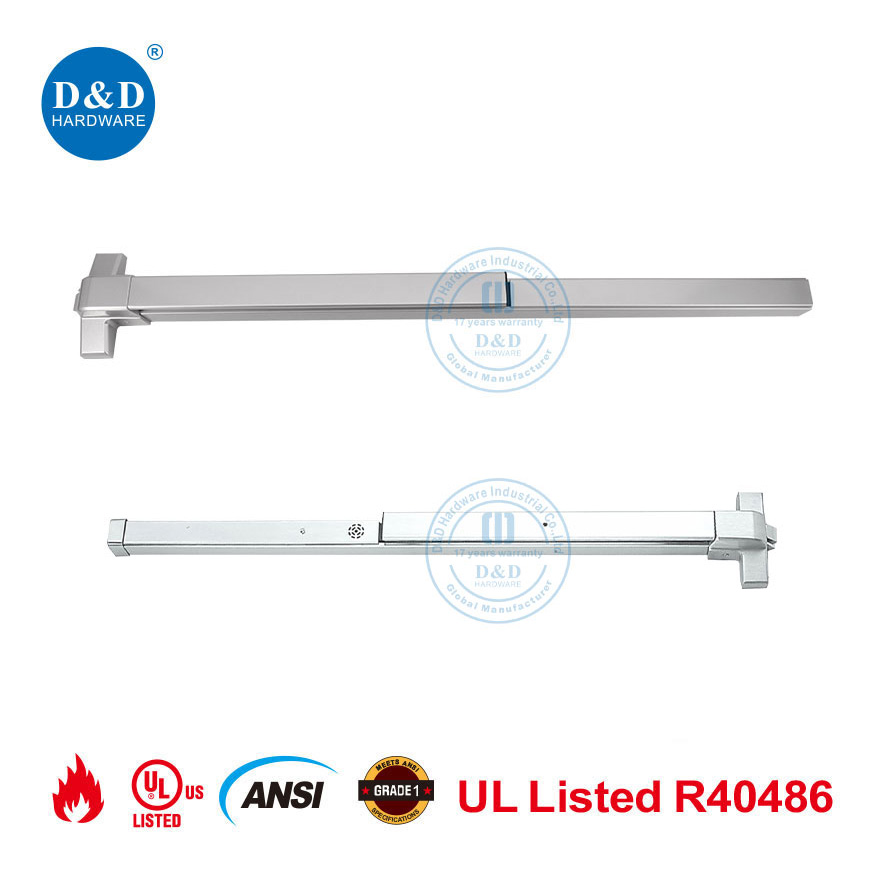

UL Panic Bar is an exit hardware solution that enables immediate door opening during emergencies while meeting UL 305 certification requirements. It supports safe evacuation by allowing occupants to push the bar and release the latch without the need for keys or complex actions. Available in various configurations such as rim, mortise, and vertical rod types, it suits different door structures and security levels. Its compliance with recognized safety standards makes it a preferred choice for commercial construction and retrofit projects.
Engineered for durability, security, and consistent performance across residential and commercial applications.
Flexible options available for wholesale, project supply, and OEM/ODM requirements.
The Emergency Exit Door Panic Bar delivers consistent operation under pressure, combining ANSI Grade 1 certification with UL fire-rated approval to meet strict building safety standards. Engineered for rim-type installation, this touch push bar ensures quick and effortless door release, even during emergency situations. With a solid steel or SUS 304 stainless steel construction, the device maintains long-term structural stability and corrosion resistance across demanding applications such as public buildings, industrial facilities, and commercial complexes. The push bar mechanism provides smooth activation with minimal force, supporting efficient evacuation flow while reducing operational wear over time. Multiple surface finishes, including painted silver, stainless steel, and PVD coatings, provide both functional durability and visual consistency across project specifications.
| Product Model | DDPD003-P | DDPD003-S |
| Materials | Steel | SUS 304 |
| Certification | UL Listed, UL 305, high quality assurance. ANSI/BHMA A156.3 | |
| Push Bar Length | Standard size: 1045mm. Standard width bars can be fIeld cut to the opening width. | |
| Backset | 2-7/16" for single door / double door with mullion. 2-5/8" for double door with overlapping astragal | |
| Touch Bar Length | Standard 500mm | |
| Door Width | 650mm to 1100mm wide | |
| Latch Point | 1 point latching | |
| Door Thickness | Suits 1-3/4"(44.5 mm) standard, for other door thickness applications, contact us | |
| Max. Door Weight | 200 kg | |
| Finish | Steel Painted Silver, SSS, PVD, AB, GOLD | |
| Fasteners | Standard machine screws, Wooden screw | |
| Strike | DDPD043 packed standard (See strike page) | |
| Dogging | Not available in Fire Exit Hardware, Hex key | |
| MOQ | 50PCS | |
| Package | 1pc / poly bag, white box / color inner box, standard export carton. | |
| Sample Time | 5-7 working days | |
| Production Lead Time | 45-60 days normally | |
| Shipping Port | Jiangmen, China / Shenzhen, China | |
UL 305 Panic Hardware brings together certified safety performance and durable construction for commercial exit systems. Featuring a UL listed configuration and available in stainless steel AISI304, this electrified rim exit device with battery provides stable emergency egress functionality across high-traffic environments. With a standard push bar length of 1045mm and field-cut capability, installation adapts easily to various door widths ranging from 650mm to 1100mm. The one-point latching system ensures reliable locking and quick release under pressure, aligning with strict safety compliance requirements. Suitable for doors up to 200 kg, the hardware delivers strong mechanical performance while maintaining smooth user interaction. As a solution provider for large-scale building projects and wholesale supply, this model supports consistent quality control and stable delivery for bulk order demands.
| Product Model | DDPD029-P | DDPD029-S |
| Materials | Steel | SUS 304 |
| Certification | UL Listed, UL 305, high quality assurance. ANSI/BHMA A156.3 | |
| Push Bar Length | Standard size: 1045mm. Standard width bars can be fIeld cut to the opening width. | |
| Backset | 2-7/16" for single door / double door with mullion. 2-5/8" for double door with overlapping astragal | |
| Touch Bar Length | Standard 500mm | |
| Door Width | 650mm to 1100mm wide | |
| Latch Point | 1 point latching | |
| Door Thickness | Suits 1-3/4"(44.5 mm) standard, for other door thickness applications, contact us | |
| Max. Door Weight | 200 kg | |
| Finish | Steel Painted Silver, SSS, PVD, AB, GOLD | |
| Fasteners | Standard machine screws, Wooden screw | |
| Strike | DDPD043 packed standard (See strike page) | |
| Dogging | Not available in Fire Exit Hardware, Hex key | |
| MOQ | 50PCS | |
| Package | 1pc / poly bag, white box / color inner box, standard export carton. | |
| Sample Time | 5-7 working days | |
| Production Lead Time | 45-60 days normally | |
| Shipping Port | Jiangmen, China / Shenzhen, China | |
UL Panic Bars are widely used in commercial buildings such as offices, shopping malls, schools, and hospitals where emergency exit compliance is mandatory. They are commonly installed on fire-rated doors and high-traffic exits to ensure safe evacuation. In large construction projects, these devices support standardized hardware systems, simplifying bulk procurement and installation processes.
See real product details, structure, and usage scenarios through our visual demonstrations.
Please contact us by email or phone with your detailed requirements. Our team will reply within 24 hours. In addition to door hardware, D&D also delivers complete door opening solutions.
We accept T/T, D/P, Western Union, and L/C as payment methods.
We are a manufacturer with over 18 years of experience and are an SGS-audited factory specializing in architectural hardware.
Yes. Up to three samples can be provided free of charge. Customers are required to arrange a courier account for freight collection.
We mainly use SUS304 and SUS316 stainless steel, with SUS201 available for selected product applications.
All our products are backed by a 10-year mechanical warranty.
Yes. We operate a complete quality control system, with strict inspection and monitoring at every stage of mass production following standardized procedures.
Yes. We provide both OEM and ODM solutions and have extensive experience collaborating with well-known global brands.
Our products carry CE and UL certifications, and all designs are developed in accordance with international standards such as EN/CE, UL, ANSI, and BHMA.
